VELFAC Ribo wood/aluminium - Inward opening patio door, 1-leaf
- Inward opening 1-leaf patio door.
- Same construction as the entrance doors.
- Also available as double leaf or single leaf with fixed sidelight and/or fan light.
- Visible hinges.
- Available as 32mm double and 52mm triple glazing.
- Threshold: 22.5mm or 45mm.
Standard fittings
- The door is fitted with a window espagnolette handle internally.
- The handle operated brake can keep the door open in a random position under calm weather conditions between approx. 10-85°.
- Three adjustable corrosion-proof hinges.
- A sash lift pulley wheel to support and assist the functionality of the sash, and which must be activated during installation of the door.
- Threshold: 22.5mm threshold of HELO® composite material in a grey hardwearing surface finish or
- 45mm threshold of hardwood (laquered oak).
Alternative fittings
- Espagnolette window handle with safety-lock.
- Espagnolette window handle with lock (small key).
- Espagnolette handle internally only, with trimplate and cylinder lock.
- Espagnolette handle internally and externally, with trimplate and cylinder lock.
- Espagnolette handle internally and externally, internally with trimplate and cylinder lock, externally with trimplate and cover plate.
- Available prepared for barrier solution.
No handle operated brake on narrow doors:
- frame width FW<648mm or
- sash width SW<586mm.
Show all
Min./max. & free opening sizes - inward opening 1-leaf glazed door
Show more

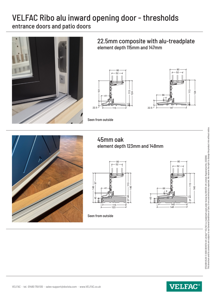

Threshold options
Show more
Standard fittings
Espagnolette handle
Handle operated brake
Standard hinge for doors
Options & Accessories
Espagnolette for patio door
Espagnolette with safety-lock
Espagnolette with lock
Cup handle for external fitting
Click vent - entrance and patio doors
Preparation for barrier solution
